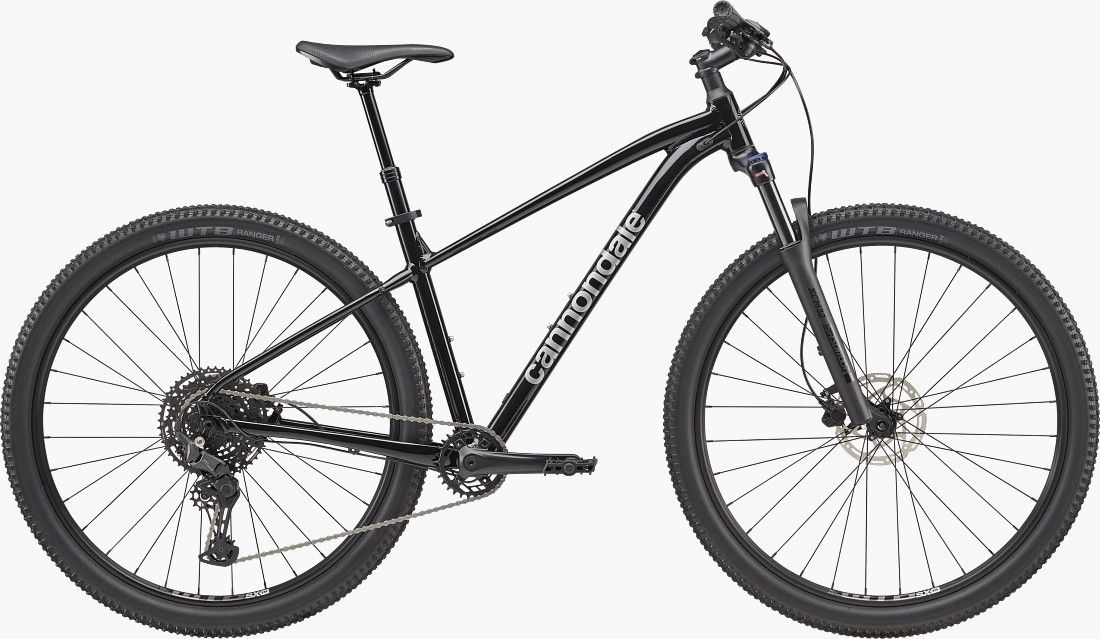

Cannondale Trail 1

Time to Level Up!

The Cannondale Trail is your first-class upgrade to next-level mountain biking—engineered for fun by a brand trusted by Champions.

Model Description

Trail 1 blends Cannondale’s 50 years of alloy expertise with modern trail capability. The SmartForm C3 alloy frame delivers a ride that’s light and responsive, while the SR Suntour XCM32 fork with 100mm travel (80mm on XS and Small sizes) takes care of the bumps so you can focus on the fun. Shimano’s CUES 10-speed drivetrain makes shifting smooth and reliable, and Tektro hydraulic disc brakes bring confidence to every descent. With a 130mm dropper post for instant seat adjustments, Trail 1 is proof that decades of innovation can deliver first-class performance, one ride at a time.

What it's for

Trail riding, light commuting, bopping around town, and having a blast.

Highlights

• A lightweight, durable SmartForm C3 Alloy frame
• 29” wheels on the larger sizes, 27.5” wheels on XS and Small for the best blend of fit and speed
• Bump-eating SR Suntour XCM32 Boost fork with 100mm of travel (80mm on XS and Small sizes)
• Shimano CUES U6000 10-speed shifting - wide range gearing with the simplicity of a single front chainring
• A hidden kickstand mount, plus mounts for a rack and fenders, offer true do-it-all versatility

• Details

  • Platform

    Trail
  • Model Name

    Trail 1
  • Model Code

    C26055U

  Frameset

  • Frame

    Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount port, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
  • Fork

    SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
  • Headset

    Semi-Integrated, 1-1/8"

  Drivetrain

  • Rear Derailleur

    Shimano CUES U6000
  • Shifters

    Shimano CUES U6000, 10-speed
  • Chain

    KMC X10, 10-speed
  • Crank

    Prowheel, Charm 30T
  • Rear Cogs

    Shimano CUES, 11-48, 10-speed
  • Bottom Bracket

    ProWheel, square taper

  Brakes

  • Brakes

    Tektro M275 hydraulic disc, 160/160mm rotors
  • Brake Levers

    Tektro hydraulic disc

  Wheels

  • Front Hub

    Shimano TC500, 15x100mm
  • Rear Hub

    Shimano TC500, 12x142mm
  • Rims

    WTB SX19, 32h
  • Spokes

    Stainless Steel, 14g
  • Tire Size

    2.25
  • Wheel Size

    27.5/29
  • Tires

    Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI

  Components

  • Handlebar

    Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
  • Stem

    Cannondale 4, 6061 Alloy, 31.8, 6°
  • Grips

    Cannondale
  • Saddle

    Cannondale Trail
  • Seatpost

    JD Dropper, internal routing, 31.6, 130mm
